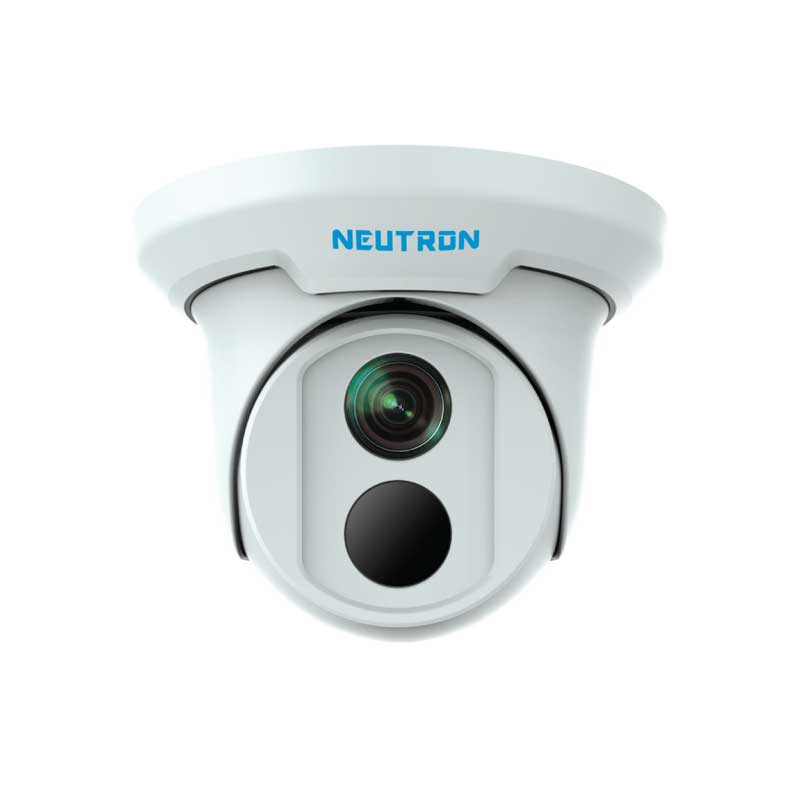

| Model |
IPC3611SR3-PF28 |
IPC3611SR3-PF36 |
IPC3611SR3-PF60 |
| Camera |
| Sensor |
1/3″, 1.3megapixel, progressive scan, CMOS |
| Lens |
2.8mm@F1.8 |
3.6mm@F1.8 |
6mm@F1.8 |
| Angle of View(H) |
105.2° |
79.7° |
51.6° |
| Shutter |
Auto/Manual, 1/6~1/100000 s |
| Min. Illumination |
Colour: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR |
| IR |
30m (98ft) IR range |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| WDR |
Digital |
| AWB(Auto white balance) |
Auto/manual |
| Gain Control |
Auto/manual |
| Noise Reduction |
2D/3D |
| Video |
| Max. Resolution |
1280×960 |
| Video Compression |
H.264/MJPEG |
| Frame Rate |
960P (1280*960): Max. 30 fps; 720P (1280*720): Max. 10 fps;
960P (1280*960): Max. 25 fps; 720P (1280*720): Max. 15 fps; D1 (720*576): Max. 6 fps |
| Video Streaming |
Triple |
| Evaluative Metering |
Supported |
| OSD |
Up to 8 OSDs |
| Motion Detection |
Up to 2 areas |
| Privacy Mask |
Up to 4 areas |
| Network |
| Protocols |
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,RTP,RTSP,DNS,DDNS,NTP,FTP,UPnP,HTTP |
| Compatible Integration |
ONVIF |
| Interface |
| Network |
10M/100M Base-TX Ethernet |
| General |
| Power |
12 V DC, or PoE (IEEE802.3 af) |
| Power consumption: 3.5 W (5.5W with IR on) |
| Dimensions (Ø x H) |
Φ126 x 94 mm (Ø5.0” x 3.7”) |
| Weight |
0.33 kg (0.73lb) |
| Working Environment |
-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 90% RH(non-condensing) |
| Ingress Protection |
IP67 |
