Açıklama
Model No OPX-6001-64EH
Operating System Embedded LINUX operating system
Image Code Control Image code quality adjustable, variable bitstream and constant bitstream optional
Dual Stream Each channel can set main stream and sub stream
Video Standard 1080P(1920×1080)30fps / 960P(1280×960)30ftp/720P(1280×720)30fps
Monitoring Image Quality 1080P(1920×1080) / 960P(1280×960)/720P(1280×720)
Image Motion Detection Each screen can set multiple detection areas and set 6-level sensitivity
Recording Playback Quality Any 9ch 960P/720P playback, 4ch 1080P/3MP playback simultaneously
Region Cover Every channel can set 4 cover regions（IPC Support）
Recording Mode Support manual , auto, dynamic detection, alarm trigger record mode
Backup Way Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup（Partly needs IPC Support）
Operation Way Mouse, Keyboard
Local Login Username and password
Recording Storage Local HDD, network
External Ports Video Input 64×(1280*960)+sub[640*480]+4Ref.+4Play 64ch 1.3MP IP Camera
49×(1280*960)+sub[640*480]+4Ref.+9Play 49ch 1.3MP IP Camera
36×(2048*1536)+sub[960*576]+4Ref.+4Play 36ch 2.0MP IP Camera
25×(2048*1536)+sub[960*576]+4Ref.+4Play 25ch 3.0MP IP Camera
25×(2592*1944)+sub[960*576]+4Ref.+1Play 25ch 5.0MP IP Camera
Audio Input 64/36/25/16 network audio input
Video Output 1ch VGA+1ch HDMI
Audio Output 1ch RCA output
Network Port 2 RJ45,10M/100M/1000M self-adaptive LAN port
RS485 Port Full duplex standard 485 port
USB Port 1USB 3.0 port, 2 USB 2.0 ports
Alarm Input 4ch
Alarm Output 4ch
Wireless Port WIFI
HDD HDD Port 9 SATA+1 E-SATA HDD ports
MAX Capacity Each port supports MAX 4TB HDD
Mobile Surveillance Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone
Power Supply ATX110-220V 250W 50-60Hz
Power Consumption ≤30W（without HDD）
Working Temperature -10°C～＋55°C
Working Humidity 10%-90%

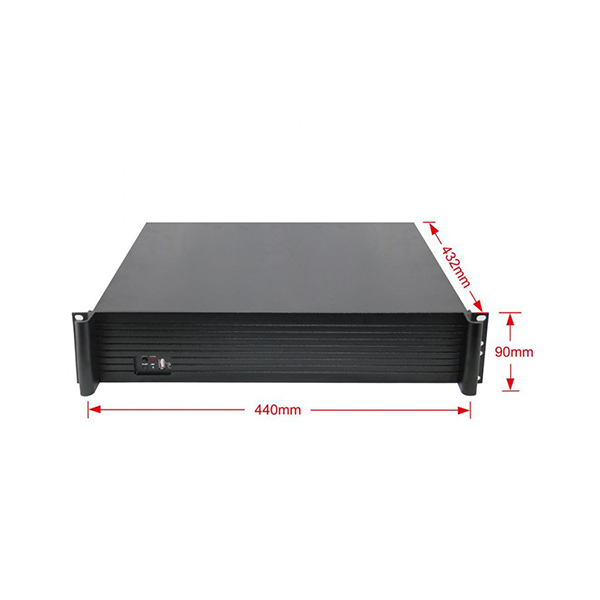

Dimension Equipment: 440mm×432mm×90mm, Packing: 539mm×550mm×225mm
Weight(without HDD) N.W.: 7.4Kg; with packing: 9.8Kg
Outside Carton 2pcs/carton. 555mm×545mm×470mm; weight: 21Kg
Installation Way Desktop Installation
