Açıklama
*Hedef Sayımı / Obje Kayıp Kontrolü / Alan Hareket Kontrolü / Sınır Kontrolü (Hat Geçiş)
Linux gömülü işletim sistemi, Düşük bit hızı (Low Stream), düşük güç tüketimi Dynamic Rate Kontrolü Desteği
H.265 Video Kodlama Desteği
Kısa Video Gecikmesi , Yüksek Hızlı Hareketli Görüntülerde Net ve Pürüzsüz Görüntü Kalitesi
3D Dijital Görüntü Kirliği Azaltma ve Edge Enhancement
Otomatik ICR Infrared Filtreleme ile Gece ve Gündüz Gerçek Görüntüleme
Backlight ve otomaitk Elektronnik Shutter ile birden Fazla fonksiyon ile farklı izleme özelliği
Opax NVR Cloud Yazılımı Destekler

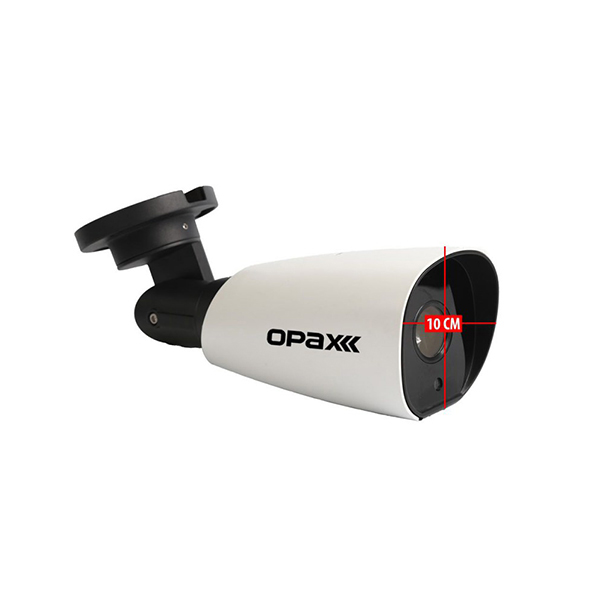

Model OPAX-2232
BASIC PARAMETER Image Sensor 1/2.9″ SC2232
Chipset MSC313E
Effective Pixels 2MP
Min. Illumination Color: 0.1Lux@F1.2; B&W: 0Lux@F1.2（IR on）
IR Distance 50-60M (72 IR LED)
Lens M12 4mm CS Lens
Noise Reduction 3D digital noise reduction
WDR Support WDR(D-WDR),＞80db
BLC Support
S/N Ratio ≥50db(AGC closed)
Image Settings Support for brightness, contrast, saturation, white balance, AWB (automatic white balance), AGC (automatic gain), AE (automatic exposure); support privacy area; normal / 90° / 270° image rotation; Automatic, manual color to black and other switches.
AUDIO / VIDEO ENCODING Encoding Format H.265 Main Profile Encoding; H.264 Baseline / Main Profile / High Profile Encoding
Image Resolution Main Stream 1920×1080, 20fps
Sub Stream 704*576, 20fps，640*480, 20fps
Video Bit Rate 32Kbps-16Mbps continuously adjustable, support CBR / VBR
Overlay Channel name, date time, steam info; position is adjustable.
DATA TRANSMISSION & STORAGE Data Storage Video, Image
Storage Mechanism Manual, automatic (cycle, timing, alarm switch, motion detection)
Alarm Data Transmission FTP, E-mail, Browser, Management software
Protocol TCP/IP, UDP, HTTP, DHCP, RTSP, DDNS, NTP, PPPOE, UPNP, SMTP, ONVIF
Access Standard ONVIF Protocol; SDK
Smart Functions Target count, item left/lost, area detection, line crossing;
Client Browse Support IE6.0 and above browser, support 8 users concurrent access (MAX)
P2P Remote OPAXNVR supports iPhone, iPad, Android system smartphone Support Windows 7 and above computer client, Apple MAC computer client
Other Support corridor mode to increase monitoring area in vertical and long environment
PORT Network RJ45, 10M/100M network adaptive
GENERAL Operation T/H -20°C ~ 55°C/0% – 90%
Waterproof IP66
Power Supply DC 12V/0,65A IR LED OFF / 1.25A IR LED ON
Power Consumption <10W (MAX)
Dimension (mm) Camera: 100(W)×100(H)×320(L)mm (with bracket);
Weight/PCS（g) N.W.: 968gr Packing: 1152
