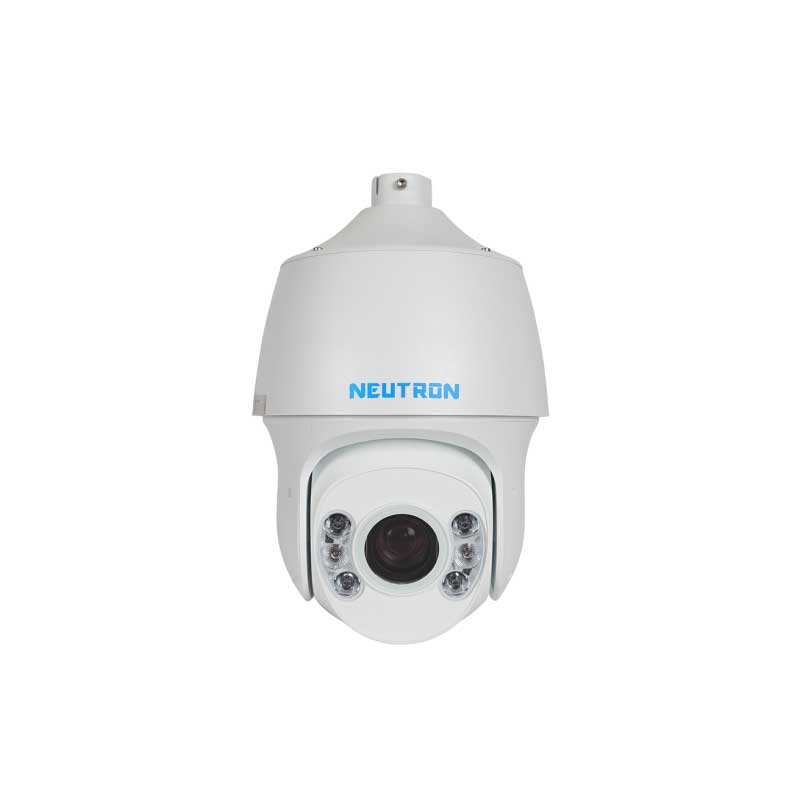

| IPC6322LR-X22-C |
IPC6322SR-X22P-C |
| Camera |
| Sensor |
1/2.9″ progressive scan, 2.0 megapixel, CMOS |
| Lens |
5.2~ 114.4 mm，AF automatic focusing and motorized zoom lens |
| Digital Zoom |
16 |
| Optical Zoom |
22 |
| DORI Distance |
Lens |
Detect(m) |
Observe(m) |
Recognize(m) |
Identify(m) |
| Angle of View (V) |
5.2mm |
83.6 |
33.4 |
16.7 |
8.4 |
| Angle of View (O) |
114.4mm |
1838.6 |
735.4 |
367.7 |
183.9 |
| Angle of View (H) |
54.40°~ 3.44° |
| Angle of View (V) |
39.2° ~1.9° |
| Angle of View (O) |
66.9° ~4.1° |
| Adjustment angle |
Pan: 0°~360° |
Tilt: 0°~90° |
Rotate: 0°~360° |
| Shutter |
Auto/Manual, shutter time: 1 ~ 1/100000 s |
| Minimum Illumination |
Colour: 0.01 lux (F1.5,AGC ON)
0 lux with IR |
| Iris |
F1.5 |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Digital noise reduction |
2D/3D DNR |
| S/N |
>55 dB |
| IR Range |
UP to 150m (492ft) |
| Defog |
Digital Defog |
| WDR |
DWDR |
| Video |
| Video Compression |
Ultra 265,H.265, H.264, MJPEG |
| H.264 code profile |
Baseline profile, Main Profile, High Profile |
| Frame Rate |
Main Stream:2MP (1920×1080):Max. 30 fps;
Sub Stream:2MP (1920×1080):Max. 30 fps;
Third Stream: D1 (720×576): Max. 30 fps |
| HLC |
Supported |
| BLC |
Supported |
| EIS |
Supported |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
Up to 24 areas |
| ROI |
Up to 8 areas |
| Motion Detection |
Up to 4 areas |
| Smart |
| Behavior Detection |
Intrusion, cross line, motion detection |
| Intrusion |
Enter and loiter in a pre-defined virtual region |
| cross line |
Cross a pre-defined virtual line |
| motion detection |
Moving within a pre-defined virtual region |
| Recognition |
Face detection |
Face detection、Audio detection |
| Statistical Analysis |
People counting |
| General Function |
Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio |
| Audio Compression |
N/A |
G.711 |
| Two-way Audio |
N/A |
Supported |
| Suppression |
N/A |
Supported |
| Sampling Rate |
N/A |
8 KHZ |
| Storage |
| Edge Storage |
Micro SD, up to 128 GB |
| Network Storage |
ANR |
| Network |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP |
| Compatible Integration |
ONVIF(Profile S, Profile G), API |
| Pan & Tilt |
| Pan Range |
360° |
| Pan Speed |
0.1°/s ~ 240°/s |
| Preset speed: 300°/s |
| Tilt Range |
–15° ~ +90° (auto reverse) |
| Tilt Speed |
0.1° ~ 80°/s |
| Preset speed: 80°/s |
| Number of Presets |
1024 |
| Patrol |
Preset patrol, route patrol, recorded patrol |
| Home Position |
Supported |
| Interface |
| Audio I/O |
N/A |
1 Input: impedance 35 kΩ; amplitude 2 V [p-p] |
| N/A |
1 Output: impedance 600 Ω; amplitude 2 V [p-p] |
| Alarm I/O |
N/A |
1/ 1 |
| Network |
1 RJ45 10M/100M Base-TX Ethernet |
1 RJ45 10M/100M Base-TX Ethernet |
| General |
| Power |
DC 12V±10% |
DC 12V±10%, PoE (PSE Required) |
| Power consumption: 16~30 W |
| Dimensions (Ø x H) |
Φ215mm×344mm(Φ8.5” x13.5”) |
| Weight |
3kg(6.6lb) |
| Working Environment |
–40°C ~ +65°C (-40°F ~ 149°F), Humidity:10%~90% RH(non-condensing) |
| Ingress Protection |
IP66 |
| Reset Button |
Supported |
