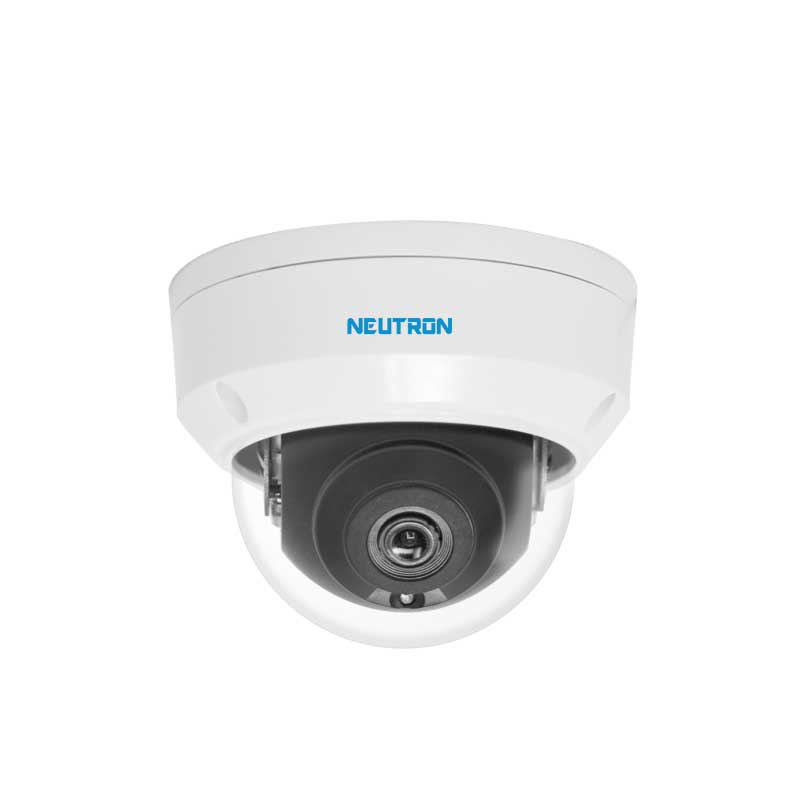

| IPC322LR3-VSPF28-D |
IPC322LR3-VSPF40-D |
| Camera |
| Sensor |
1/2.7″, progressive scan, 2.0 megapixel, CMOS |
| Lens |
2.8mm@F2.0 |
4.0mm@F2.0 |
| DORI Distance |
Lens |
Detect(m) |
Observe(m) |
Recognize(m) |
Identify(m) |
| 2.8mm |
46.7 |
18.7 |
9.3 |
4.7 |
| 4.0mm |
66.7 |
26.7 |
13.3 |
6.7 |
| Angle of View (H) |
112.7° |
86.5° |
| Angle of View (V) |
60.1° |
44.1° |
| Angle of View (O) |
146.5° |
106.4° |
| Adjustment angle |
Pan: 0°~360° |
Tilt: 0°~75° |
| Shutter |
Auto/Manual, 1~1/100000 s |
| Minimum Illumination |
Colour: 0.02Lux ( F2.0, AGC ON)
0Lux with IR |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Digital noise reduction |
2D/3D DNR |
| S/N |
>52dB |
| IR Range |
Up to 30m (98 ft) IR range |
| WDR |
DWDR |
| Video |
| Video Compression |
Ultra 265,H.265,H.264,MJPEG |
| H.264 code profile |
Baseline profile, Main Profile |
| Frame Rate |
Main Stream:1080P (1920*1080): Max. 30 fps;
Sub Stream:720P (1280*720): Max. 30 fps;
Third Stream: CIF (352*288): Max. 30 fps |
| HLC |
Supported |
| BLC |
Supported |
| OSD |
Up to 4 OSDs |
| Privacy Mask |
Up to 8 areas |
| ROI |
Up to 2 areas |
| Motion Detection |
Up to 4 areas |
| Network |
| Protocols |
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP, SSL |
| Compatible Integration |
ONVIF(Profile S, Profile T), API |
| Interface |
| Network |
10/100M Base-TX Ethernet |
| General |
| Power |
DC12V±25%, PoE (IEEE802.3 af) |
| Power consumption: Max. 4.5W |
| Dimensions (Ø x H) |
Φ109 x 81mm (Ø4.3” x 3.2”) |
| Weight |
0.37kg (0.81lb) |
| Working Environment |
-30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~90% RH(non-condensing) |
| Ingress Protection |
IP67 |
| Vandal Resistant |
IK10 |
