Açıklama

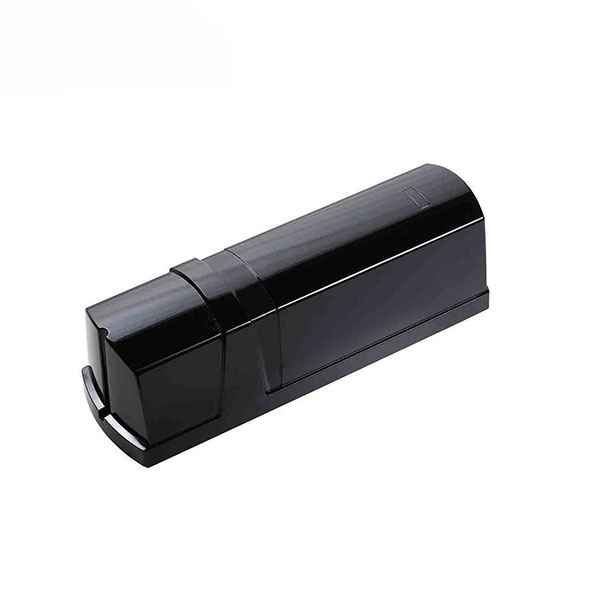

ABE-250 3 Işınlı 250 Metre Active IR Beam Dedektör
• Seçilebilir4 farklı kanal frekansı: İstifleme, Düz Çizgi, Kare veya diğer çeşitli uygulamalara izin verilir.
• Kauçuk contası ile su geçirmez tasarım, yağmur, kar, çiğ, sis, don vb. hava şartlarına dayanıklı IP65 koruma standardı
• Üçlü Işın: 3 ışın arasındaki 20 cm mesafe ile yanlış alarmı önler
• Kolay optik hizalama: Çit Hassaiyetli Dijital Led Gösterge 01-99 aralığında sinyal gücünü göstererek kolay montaj yapmayı sağlar
• Akıllı sıcaklık kontrol sistemi, önceden ayarlanmış ısıtıcı terminalleri.
• Dış ortam değişikliklerine göre çevre uyarlama fonksiyonu ile hava şartlarına göre ayarlar ve yanlış alarm oranını en aza indirir
• AGC devresi, zorlu hava ve çevre koşullarına karşı yüksek hassasiyeti otomatik olarak ayarlar
• Hizalama açısını Yatayda ± 90° / Dikeyde ± 10° olarak kolayca ayarlayabilirsiniz
• Kolay hizalama yapmak için LED ekran sinyal derece göstergesi
• Dijital DIP switch teknolojisiyle, frekans, hassasiyet, gösterge ve çalışma gücü DIP Switch ile kolayca ayarlanabilir
1.Selectable frequency 4 channels : Stacking, Straight line, Square or other various applications are allowed.
2.Professional waterproof design with rubber seal around, anti-rain, snow, dew, mist, frost etc, IP65 ingress protection.
3.Triple beam: interval of 3 beams is 20cm, improves the ability of anti-false alarms.
4.Intelligent temperature control system, pre-set heater terminals.
5.Environment adaptive function, according to external environment changes, timely adjust to adapt the state, reduce the false alarms rate.
6.AGC circuit, the detector will automatically increase sensitivity when faced harsh environment.
7.Horizontal ±90° / vertical ±10° optical angle can be easy to adjust.
8.LED display signal grade for easy alignment.
9.Adopt digital DIP technology,frequency,sensitivity,indicator and operation power can be adjusted through DIP switches.
1.Selectable frequency 4 channels : Stacking, Straight line, Square or other various applications are allowed.
2.Professional waterproof design with rubber seal around, anti-rain, snow, dew, mist, frost etc, IP65 ingress protection.
3.Triple beam: interval of 3 beams is 20cm, improves the ability of anti-false alarms.
4.Intelligent temperature control system, pre-set heater terminals.
5.Environment adaptive function, according to external environment changes, timely adjust to adapt the state, reduce the false alarms rate.
6.AGC circuit, the detector will automatically increase sensitivity when faced harsh environment.
7.Horizontal ±90° / vertical ±10° optical angle can be easy to adjust.
8.LED display signal grade for easy alignment.
9.Adopt digital DIP technology,frequency,sensitivity,indicator and operation power can be adjusted through DIP switches.
Model OPAX ABE-250
Detection Range Outdoor 250m
Indoor 750m
Maximum Arrival Distance 1500m
Detection Method Simultaneous interruption of 3 infrared beams
Interruption Time 50msec, 100msec,300msec,700msec (selectable)
Beam frequency 4 channel selectable
Power Supply DC9～30V/AC9～20V
Current Consumption 110mA max
Alarm Period 2sec (±1)
Alarm Output 1C. relay output (ACDC30V 1.0Amax)
Tamper Switch NC, opens when cover removed
Operating Temperature -25℃ to +55℃
Environment Humidity 95% max
Alignment Angle Horizontal 180°(±90°), Vertical 20°(±10°)
Mounting Wall or Pole
Protection Degree IP65
Material PC engineering plastic
Dimension (L*W*H) 291mm×91mm×92mm
Weight (Transimtter and Receiver) 1670g
Heaters
(additional purchase) Voltage DC9～30V/AC9～20V
Current 200mA max
Temperature +70℃
Note: When environment termperature lower than -20℃, please use heaters to ensure normal working. Heater is non-polarized.
